Troubleshooting & Diagnostic Tools

Q: What causes most PROFIBUS communication errors?

The majority of PROFIBUS errors stem from physical layer problems: damaged cables, improper termination, shield discontinuities, or exceeding maximum segment length. Studies show 70-80% are installation-related, not device failures. Always test cables and signal quality before replacing field equipment.

Q: Can I troubleshoot PROFIBUS without stopping production?

Yes. The PROFIBUS-INspektor NT and PB-Q ONE both connect via diagnostic access points without interrupting communication. Only offline cable testing with PROFtest II requires brief system shutdown. Install measuring points at segment boundaries for safe diagnostic access anytime.

Q: Why do I need the INspektor® NT if I have a PB-Q ONE?

The PB-Q ONE is a mobile tool for temporary measurements—you connect it, run a test, then disconnect. The INspektor® NT is for permanent installation and continuous monitoring. The INspektor® captures intermittent errors that occur randomly during production (which the PB-Q ONE would miss), stores historical data for trend analysis, and sends automated alerts. Think of PB-Q ONE as a diagnostic flashlight for targeted testing, while the PROFIBUS-INspektor® NT is a security camera watching your network 24/7.

Q: How often should I perform PROFIBUS network diagnostics?

Recommended: (1) Initial commissioning – complete cable testing, signal quality baseline, acceptance reports. (2) Quarterly – spot-check critical segments. (3) Annually – comprehensive network re-test. (4) Continuous – deploy INspektor NT with PROmanage NT software for 24/7 monitoring on critical networks.

Q: What's the ROI of PROFIBUS diagnostic equipment?

One hour of unplanned downtime costs $5,000-$50,000. Professional tools reduce MTTR from 4-8 hours to 30-60 minutes. A $6,000-$10,000 investment pays for itself after preventing a single major failure. Permanent monitoring enables predictive maintenance—catching degradation before downtime. Most facilities achieve ROI within 3-6 months.

Find the Right PROFIBUS Diagnostic Tools for Your Application

PROFIBUS network failures cost manufacturers thousands per hour in lost production. The right diagnostic tools locate problems in minutes, not hours—from live network analysis during production to offline cable testing during installation. Whether you're troubleshooting intermittent failures or implementing predictive maintenance, our PROFIBUS diagnostic equipment helps prevent costly downtime.

Jump to Products Talk to a PROFIBUS Specialist

5 Most Common PROFIBUS Problems

Problem	Root Cause	First Diagnostic Step
Intermittent Device Dropouts Devices disappear randomly during production	Cable aging, shield current issues, signal quality degradation, EMC interference	Monitor with PROFIBUS-INspektor® NT to capture sporadic errors
Telegram Repetitions & Retries Communication errors, slow cycle times	Signal quality issues, reflections, improper termination	Analyze with PB-Q ONE to measure Q-values
New Installation Won't Communicate Network fails during commissioning	Damaged cables, swapped A/B wires, missing termination	Test offline with PROFtest II XL
Network Degradation Over Time Worked fine for months, now having issues	Cable wear, connector corrosion, environmental changes	Compare vs. baseline with PROFIBUS-INspektor® NT historical data
Random Errors Near VFDs/Motors Sporadic failures with no pattern	EMC interference, high shield currents, improper grounding	Measure shield currents with EMCheck® LSMZ I

Key insight: According to PROFIBUS & PROFINET International (PI), physical layer issues (cables, termination, grounding) are the leading cause of network failures rather than device faults (PROFIBUS Installation Guidelines, 2021). Systematic diagnosis with the right tools cuts troubleshooting time from hours to minutes.

PROFIBUS Troubleshooting: Quick Decision Guide

For Live/Running Networks (Can't Stop Production)

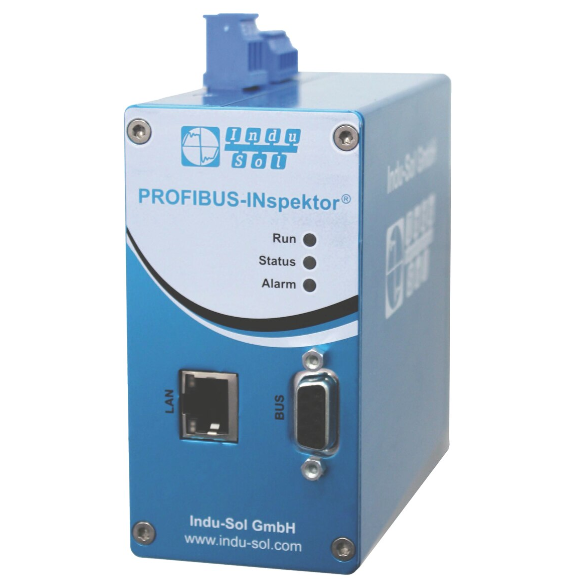

Start here: PROFIBUS-INspektor® NT

Connects inline via measuring points without interrupting communication
Captures intermittent errors that occur during production cycles
Provides device-by-device error statistics to pinpoint problem areas
Records historical data to compare current vs. baseline performance
Best for: Troubleshooting sporadic issues, 24/7 monitoring, predictive maintenance

The INspektor® works passively—it observes traffic without affecting your network.

For Quick Diagnosis (Can Stop Briefly)

Start here: PROFIBUS Tester PB-Q ONE

Complete physical and logical analysis in minutes
Traffic-light quality display (green/yellow/red) for instant assessment
Measures Q-values per device (>2500 indicates healthy signal quality)
Automated topology detection during running operation
Best for: Commissioning acceptance tests, periodic health checks, emergency troubleshooting

For New Installations (Offline Testing)

Start here: PROFtest II XL Cable Tester

Test cables before power-up to catch installation errors
Verifies wire continuity, proper A/B pairing, shield integrity
Measures cable length and impedance (PROFIBUS spec: 150Ω ±15%)
Locates cable faults within 1 meter
Best for: Installation verification, acceptance testing, isolating cable faults

Pro tip: Always test from both ends of each segment.

Why PROFIBUS Measuring Points Are Essential

Professional PROFIBUS troubleshooting requires safe diagnostic access without interrupting network communication. PROFIBUS measuring points provide feedback-free tap connections that let you connect diagnostic tools like the PROFIBUS-INspektor® NT or PB-Q ONE during live operation.

Key benefits:

No signal reflection: Unlike T-connectors, measuring points are impedance-matched to prevent signal quality degradation
Non-disruptive access: Connect diagnostic tools during operation without stopping communication
Permanent installation: Build diagnostic access into your infrastructure during commissioning
Required for passive monitoring: The INspektor® connects inline via measuring points without stopping production

Best practice: Install measuring points at segment boundaries, before/after repeaters, and at the start of critical machine zones during initial network installation. This gives you troubleshooting access anywhere without production interruption.

Which PROFIBUS Diagnostic Tools Do You Need?

Scenario 1: Troubleshooting Sporadic Failures During Production

Challenge: Devices randomly drop offline during certain production cycles. You can't recreate the problem on demand, and stopping production isn't an option.

Solution: PROFIBUS-INspektor® NT

Passive monitoring: Connects inline via measuring points—doesn't affect network traffic
Continuous capture: Records all telegram errors, repetitions, device failures with timestamps
Trigger functions: Automatically logs snapshots when thresholds are exceeded
Web interface: View real-time status and historical data from any browser
Device statistics: Shows which devices generate the most errors

Typical workflow: Install the INspektor® inline, let it run 24-72 hours during production, review error statistics, identify problematic devices, leave installed for ongoing monitoring or remove after troubleshooting.

ROI: Prevents unplanned shutdowns

Scenario 2: Commissioning New PROFIBUS Networks

Challenge: You need to verify cable quality and signal integrity before connecting expensive field devices and going into production.

Solution: PROFIBUS DiagnosticDUO (PROFtest II XL + PB-Q ONE)

Offline cable testing: Test before power-up to catch wiring errors, cable damage, improper termination
Online quality verification: Verify signal quality meets PROFIBUS specifications (Q-value >2500)
Acceptance documentation: Generate professional commissioning reports for customer handoff
Mobile kit: Everything in one case for commissioning teams

ROI: Avoid callbacks and rework, professional documentation

Scenario 3: Managing Critical 24/7 Networks

Challenge: You run continuous processes where 1 hour of downtime costs $50K+. You need to catch problems before they cause failures.

Solution: Permanent monitoring with PROFIBUS-INspektor® NT + PROmanage® NT V2

Distributed monitoring: One INspektor® per PROFIBUS master captures segment diagnostics
Centralized management: The PROmanage® software aggregates data from multiple INspektors®
Automated alerting: Email, SNMP, or OPC notifications when quality thresholds breach
Long-term trending: Store up to 1 year of data for root cause analysis
Predictive maintenance: Schedule maintenance based on actual network condition

ROI: Prevent failures worth $100K-$500K+ per incident

Scenario 4: EMC Problems Near Drives/VFDs

Challenge: Random errors near variable frequency drives or motors. Standard tools show intermittent signal issues but don't identify root cause.

Solution: EMCheck® LSMZ I + PB-Q ONE

Shield current measurement: Clamp around cable shield to measure leakage/interference currents
Clear criteria: Shield currents should be <40 mA; higher values indicate EMC problems
Non-invasive: Measure without breaking circuit or interrupting network

ROI: Identifies root cause other tools miss, prevents device damage

PROFIBUS Troubleshooting FAQs

What causes most PROFIBUS communication errors?

The majority of PROFIBUS errors stem from physical layer problems: damaged cables, improper termination, shield discontinuities, or exceeding maximum segment length. Studies show 70-80% are installation-related, not device failures. Always test cables and signal quality before replacing field equipment.

Can I troubleshoot PROFIBUS without stopping production?

Yes. The PROFIBUS-INspektor® NT and PB-Q ONE both connect via diagnostic access points without interrupting communication. Only offline cable testing with PROFtest II XL requires brief system shutdown. Install measuring points at segment boundaries for safe diagnostic access anytime.

Do I need the PROFIBUS-INspektor® if I have a PB-Q ONE?

The PB-Q ONE is a mobile tool for temporary measurements—you connect it, run a test, then disconnect. The PROFIBUS-INspektor® NT is for permanent installation and continuous monitoring. The INspektor® captures intermittent errors that occur randomly during production (which the PB-Q ONE would miss), stores historical data for trend analysis, and sends automated alerts. Think of PB-Q ONE as a "diagnostic flashlight" for targeted testing, while the INspektor® is a "security camera" watching your network 24/7.

How often should I perform PROFIBUS network diagnostics?

Recommended: (1) Initial commissioning – complete cable testing, signal quality baseline, acceptance reports. (2) Quarterly – spot-check critical segments. (3) Annually – comprehensive network re-test. (4) Continuous – deploy PROFIBUS-INspektor® NT with PROmanage® NT software for 24/7 monitoring on critical networks.

What's the ROI of PROFIBUS diagnostic equipment?

One hour of unplanned downtime costs $5,000-$50,000. Professional tools reduce MTTR from 4-8 hours to 30-60 minutes. A $6,000-$10,000 investment pays for itself after preventing a single major failure. Permanent monitoring enables predictive maintenance—catching degradation before downtime. Most facilities achieve ROI within 3-6 months.
