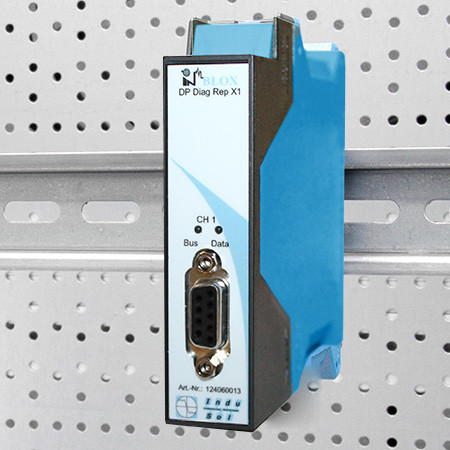

INBLOX® PROFIBUS Repeater - extension module X1 | 124060013

INBLOX® Extension Module | DP Diag Repeater X1

The INBLOX® PROFIBUS repeater extension module DP Diag Rep X1 with sub-D output can open one segment. Up to five extension modules can be connected to the E-head module, so that 5 segments per network can be created. The module monitors the logic communication of the master system with a clear malfunction assignment in each segment. An initial simple diagnosis and monitoring are able by LEDs, which show the fieldbus status and the health of the network.
