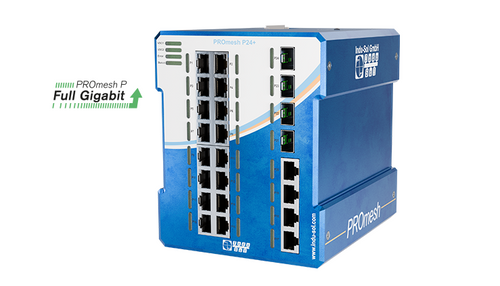

PROmesh P24+ | Full-managed switch for PROFINET and EtherNet/IP 114110150

The PROmesh P24+ is a fully managed industrial Ethernet switch, developed for the requirements of Industry 4.0, with PROFINET v2.4 certification and EtherNet/IP compatibility.

The PROmesh P24+ supports data transmissions at speeds of up to 10 Gbit/s and is specially designed for use in industrial networks. By integrating EMC and performance monitoring, it enables continuous network monitoring and diagnostics to ensure network stability. Integrated security features such as firewall and NAT routing enable the implementation of various security concepts, e.g. in accordance with IEC 62443. With UL/CSA certification, it meets international safety standards.

The equipment with SFP slots enables flexible use of copper cables or fiber optic cables. The PROFINET v2.4 certification and the extended operating temperature range underline its suitability for industrial applications. Installation is simplified by the compact design and the option of top-hat rail mounting.

Product highlights

• Integrated diagnostics:
  • Online line monitoring
  • Network monitoring (network load, discards, errors)
  • Environmental monitoring (leakage current, vibration, light, humidity)
• High performance:
  • FullGigabit and transmission rates up to 10 Gbit/s
  • Quality of Service
  • 8 priority queues

Functions:

• Permanent physical monitoring of data lines thanks to line diagnostics
• PROFINET v2.4 certified
• EtherNet / IP support (eds file)
• 20 x RJ45 ports and 4 x SFP slots for a wide range of networking options
• Extended operating temperature range from -40°C to 75°C
• Compact design with DIN rail mounting
• CE | UKCA and UL/CSA certification
