PROscan® Active V2 - Network topology software 25x licences 117000061

PROscan® Active V2 | PROFINET/Industrial Ethernet Topology Software - 25x licenses

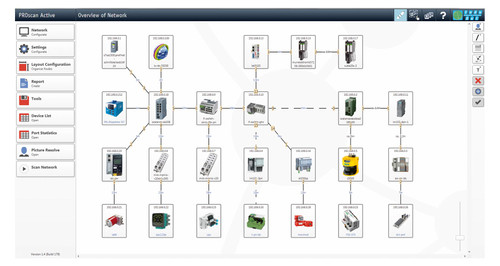

The PROscan® Active V2 software enables the user at any time to record and display an actual topology plan of a PROFINET/ Ethernet network incl. all important device information. Subsequently, this information can be edited and printed in a clear summary. It is also possible to simply save the information as Topo/PDF/CSV data. By using compare scan, all topology changes will be illustrated in traffic light colors. The software also offers an optimized touch panel designed to be used on HMI & Panel PC’s.

Due to multiple licenses the user is able to install the software at various machines and can therefore demonstrate multiple network structures. This ensures that the current topology and the current network data can be recorded and displayed at each machine.

PROscan® Active V2 provides the user with following information, which is of high importance for the network maintenance and troubleshooting’s:

• Detection of the real network structure (topology)
• Device information
  • PROFINET name
  • IP/MAC address
  • Hardware/Software version
  • Device type/name
  • Order number
• Line information
  • Line length
  • Power budget (POF)
• Port Overview
  • Discards
  • Errors

PROscan® Active V2 Features

• Detection of the real network structure (topology)
• Node information e.g. IP/MAC address, device type/name
• Cable information e.g. cable lengths
• Comparative scan function shows changes immediately
• Node and port overview available
• Adjustable threshold values for damping reserve
• Detection of POF devices port statistics
• Printout of scanned topology as technical drawing
• Optimized for touch panel
• Highlight the controller domain
• Plus and minus in the zoom slider
• Readout the module information (asset management)
• EMC overview
• Edit ports

New Features

• New diagnostic mode with transparent statistics
• Comparison of hardware/software versions, with a warning if a deviation is found
• Transparent acceptance report as check list (“Fulfilled”/“Not fulfilled”), with own company logo
• Multi-topology: Several topologies can be opened at the same time
• Significantly faster network scan with minimum network load
• Simplified editing:
  • Software helps to correctly arrange devices
  • Port numbers for the created connections are editable
  • All changes can be undone

System Requirements

Operating system:
• Microsoft® Windows® Vista, 7, 8, 10
• Microsoft® Windows® Server 2008, 2012, 2016

Hardware requirements:
• Intel Atom 800MHz or more
• 1GB RAM or more
• Min. 400MB hard disk space
