CANbus Active Measuring Point IP67 | CBMA set 119040001

Active measuring point CBMA IP67

To determine physically the signal-to-noise ratio of the CAN/CANopen communication, it is necessary to provide a feedback-free measuring point CBMA in every master system at the segment ends each. The diagnostic tools are connected via the M12 measuring socket provided at the CBMA.

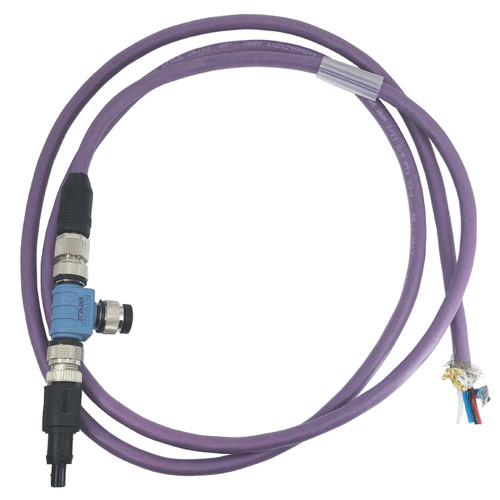

The CBMA set includes

• 1 x active measuring adapter CBMA
• 1 x one-sided pre-cut CAN bus line - 1.5m
• 1 x M12 bus termination
• 1 x M12 blind plug

Engineering Drawing
